Mastering Gradio Inputs and Outputs: Make Your Models Interactive



Chapter-2

Introduction

In Chapter-1, you saw how easy it is to build a basic Gradio app. But the real power of Gradio comes from its rich variety of input and output components. Whether you're working with images, text, audio, video, or files — Gradio provides ready-made UI elements to make your models interactive with just a few lines of code.

In this article, we’ll explore:

• All major inputs and outputs

• Parameter tuning for customization

• How to chain multiple components/functions together

Textbox

Use When:

You want the user to input plain text (sentences, prompts, numbers as strings, etc.)

Key Parameters:

• label: Display name

• lines: Height of textbox (default = 1)

• placeholder: Hint inside the box

• value: Default value

Example:

import gradio as gr

def reverse(text):

    return text[::-1]

gr.Interface(fn=reverse, inputs=gr.Textbox(label="Enter text"), outputs="text").launch()


 Use When:

You're building an image classifier, object detector, drawing interface, etc.

Key Parameters:

• type: "numpy" (for models), "pil" (PIL Image), or "file" (file path)

• image_mode: "RGB", "L" (grayscale), etc.

• shape: Resized output shape

• tool: "editor" (free drawing), "select" (crop), or "sketch"

Example

def shape(image):

    return image.shape

gr.Interface(fn=shape, inputs=gr.Image(type="numpy"), outputs="text").launch()

Audio

Use When:

You're working with speech-to-text, audio classification, or waveform manipulation.

 Key Parameters:

• type: "numpy" (tuple of sample rate and array) or "file" (file path)

• label, source: Upload or microphone

• interactive: Record live audio

Example

def audio_length(audio):

    sr, data = audio

    duration = len(data) / sr

    return f"{duration:.2f} seconds"

gr.Interface(fn=audio_length, inputs=gr.Audio(type="numpy"), outputs="text").launch()

Video

Use When:

You're building action recognition, frame prediction, or captioning tools.

Key Parameters:

• type: "numpy" (for video array) or "file" (path)

• format: Accepts .mp4, .webm, etc.

Example:

def video_echo(video):

    return video

gr.Interface(fn=video_echo, inputs=gr.Video(), outputs="video").launch()

File

Use When:

You want users to upload any document — CSVs, PDFs, images, etc.

Key Parameters:

• file_types: Restrict file types like [".csv", ".pdf"]

• type: "file" (returns path) or "binary"

Example:

import os

import gradio as gr

def file_details(file_path):

    size_kb = os.path.getsize(file_path) / 1024

    name = os.path.basename(file_path)

    return f"Name: {name}, Size: {size_kb:.1f} KB"

gr.Interface(fn=file_details, inputs=gr.File(), outputs="text").launch()

Slider

Use When:

You want a numeric input within a specific range.

Key Parameters:

• minimum, maximum, step

• value (default)

• label

Example:

def double(x):

    return x * 2

gr.Interface(fn=double, inputs=gr.Slider(0, 100, step=5, label="Choose a number"), outputs="number").launch()

Checkbox

Use When:

You want a binary yes/no or true/false input.

Example:

def check_status(checked):

    return "Enabled" if checked else "Disabled"

gr.Interface(fn=check_status, inputs=gr.Checkbox(label="Enable feature"), outputs="text").launch()

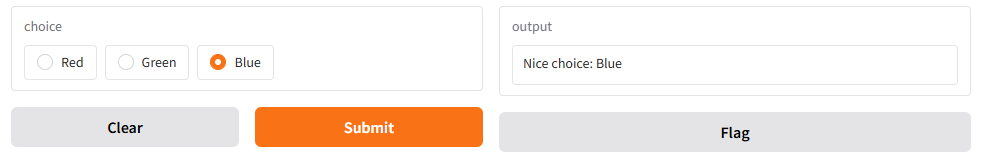

Radio Buttons

Use When:

You want the user to select one from multiple options.

Key Parameters:

• choices: List of options

Example:

def favorite_color(choice):

    return f"Nice choice: {choice}"

gr.Interface(fn=favorite_color, inputs=gr.Radio(["Red", "Green", "Blue"]), outputs="text").launch()

Dropdown

Use When:

You want a collapsible list of options (can also allow multiple selections).

Key Parameters:

• choices, multiselect, value

Example:

import gradio as gr

def color_summary(color):

    return f"You selected: {color}"

gr.Interface(fn=color_summary, inputs=gr.Dropdown(choices=["Red", "Green", "Blue"]), outputs="text").launch()

Dataframe

Use When:

You want users to input/edit tabular data like CSVs.

Key Parameters:

• headers, datatype, row_count, col_count

Example:

import gradio as gr

import pandas as pd

def mean_col(data):

    # Convert to DataFrame

    df = pd.DataFrame(data, columns=["A", "B", "C"])

    try:

        # Ensure numeric computation

        df = df.apply(pd.to_numeric, errors='coerce')  # Handles string values too

        means = df.mean()

        return means.to_frame(name="Mean").T  # return as DataFrame for display

    except Exception as e:

        return f"Error: {e}"

gr.Interface(

    fn=mean_col,

    inputs=gr.Dataframe(

        headers=["A", "B", "C"],

        row_count=3,

        col_count=3,

        datatype=["number", "number", "number"],

        label="Enter numbers"

    ),

    outputs=gr.Dataframe(label="Column Means")

).launch()
